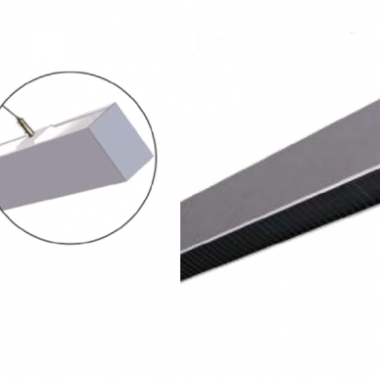

Up and down grille LED Linear light 51*80

6063-T5 aluminum alloy profile lamp body, anodized or sprayed

Aluminum-Polycarbonate(PC)+Grille

OSRAM/TRIDONIC/PHILIPS Constant current LED driver for recessing in

LED  OSRAM，Lifespan:>50.000hours

CIR:>90  R9:>50  CDCM:<3       Alternatives (CIR:>80   CDCM:<5)

Wattage: Up:9W,Down:25W

Lumen：75lm/w  Or  85lm/w

CCT：3000K,3500K,4000K,6000K   Or RGBW

Input :AC200-240V/100-277V

beam angle：120°,   LOP:  IP20

Size(mm)：  W:50.8mm,  H:80mm,  L:600/900/1200/1500/1800/2400mm

Continuous，can be customized different lengths

Mounting Accessories （Options)：

Suspension wire，side mounting bracket

Dimming systems：0-10V,DALI,DT8  2.4G , DMX ,Potentiometer  with PWM

Metal finish:White，Black，Silver

Special aluminum finish：Blue，Green，Red，Yellow，Grain，Bronze，Gold，Brass

IES  Make contact:   info@100lida.com
