DETAILED INTRODUCTION

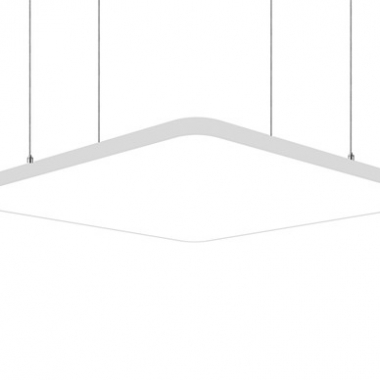

Rhombus Panel Light

Suspended LED panel
Aluminum-Polycarbonate(PC)
2700K/3000K/4000K/6000K
CRI:90 R9>50
Input :AC200-240V/100-277V
Estimated LED Lifespan:50.000hours
Warranty:5years

  1. 6063-T5 aluminum alloy profile lamp body, anodized or sprayed

  2. Aluminum-Polycarbonate  PC

  3. OSRAM/TRIDONIC/PHILIPS Constant current LED driver for recessing in

  4. LED  OSRAM，Lifespan:>50.000hours

  5. CIR:>90  R9:>50  CDCM:<3       Alternatives (CIR:>80   CDCM:<5)

  6. Lumen：85lm/w  Or  95lm/w

  7. CCT：3000K,3500K,4000K,6000K   Or RGBW

  8. Input :AC200-240V/100-277V

  9. beam angle：120°,   LOP:  IP20

  10. Product code：

  11. ModelnoSize(mm)WattageLumen
    SF900900*134050W4000lm
    SF12001200*186080W6400lm
    SF15001500*2378140W11200lm

  13. Size(mm)：H:75mm,

  14. Any sizes can be customized

  15. Mounting Accessories ：Suspension wire

  16. Dimming systems：0-10V,DALI,DT8  2.4G , DMX ,Potentiometer  with PWM

  17. Metal finish:White，Black，Silver

  18. Special aluminum finish：Blue，Green，Red，Yellow，Grain，Bronze，Gold，Brass

  19. IES  Make contact:   info@100lida.com
